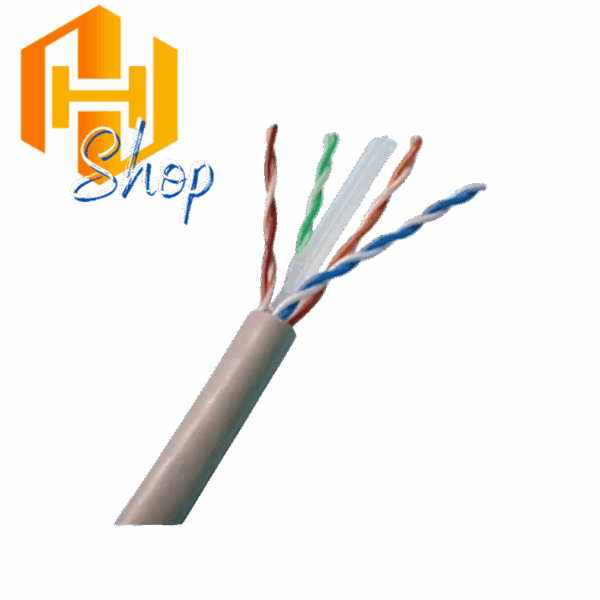

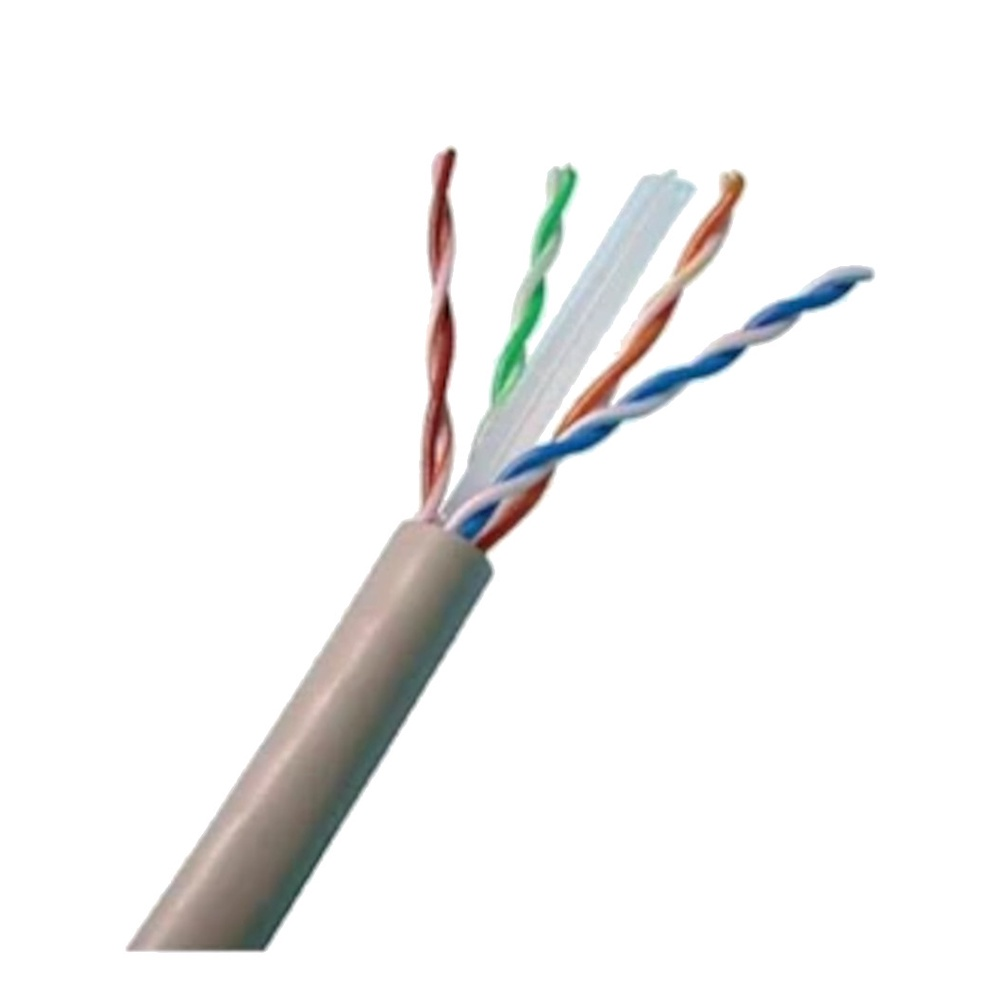

BELDEN Cable UTP Cat 6 7814A

Belden 7814A UTP Cat 6 Cable
High-Performance Networking Cable for Demanding Data Applications

The Belden 7814A Category 6 UTP Cable is engineered to deliver superior performance for high-speed data transmission in enterprise and commercial environments. Designed to exceed ANSI/TIA-568-C.2 Category 6 standards, this unshielded twisted pair (UTP) cable provides reliable Gigabit Ethernet performance with minimal crosstalk and excellent signal integrity.

Key Features:

• Category: Cat 6 UTP (Unshielded Twisted Pair)

• Conductor: 23 AWG solid bare copper

• Insulation: Polyolefin

• Jacket Material: PVC (Riser Rated – CMR)

• Nominal Outer Diameter: Approx. 6.0 mm

• Color Options: Standard jacket color is Blue (other colors available on request)

• Performance: Exceeds TIA/EIA-568-C.2 Cat 6 standards for NEXT, PSNEXT, ACR, and RL

• Bandwidth Support: Up to 250 MHz

• Applications: 10/100/1000BASE-T Ethernet, PoE/PoE+, video, and voice over IP (VoIP)

Compliance & Certifications:

• Standards: ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173

• Flame Rating: UL 1666 (Riser)

• RoHS Compliant: Yes

Applications:

• Structured cabling systems for horizontal and backbone installations

• Enterprise LANs, data centers, schools, hospitals, and commercial buildings

• Ideal for high-speed internet, video surveillance, and VoIP communication
